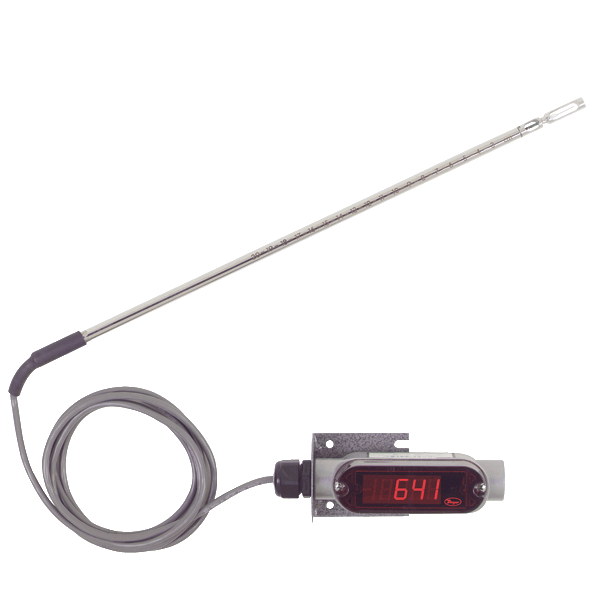

您當前的位置：首頁產品中心Dwyer 分體式風速變送器 641RM系列
For Remotely Mounting Electronic Enclosure
641RM系列帶有遠程探頭的風速變送器具有與641系列相同的高度精確的熱質量流量傳感器，具有遠程探頭結構。單元6?電纜連接傳感探頭與電子外殼允許外殼安裝在它可以更容易地訪問。
應用及案例
? 潔凈室供新風
? 暖通空調系統風速測量
? 風機供排風記錄
? 保證實驗室風柜正常通排風
產品特色
? Ranges from 250 FPM (1.25 MPS) to 15,000 FPM (75 MPS)
? Optional bright LED display
? Easy push button set-up
? Compact housing
? 4 to 20 mA output
? Digital filter for signal damping
Service: Clean Air And Compatible, Non-Combustible Gases.
Accuracy: 3% FS Process Gas: 32 To 122°F (0 To 50°C); 4% FS Process Gas: -40 To 32°F & 122 To 212°F (-40 To 0°C & 50 To 100°C).
Response Time: Flow: 1.5 Seconds To 95% Of Final Value (Output Filter Set To Minimum).
Temperature Limits: Process: -40 To 212°F (-40 To 100°C). Ambient: 32 To 140°F (0 To 60°C).
Pressure Limit: 100 Psi (6.89 Bar) Maximum.
Humidity Limit: Non-Condensing.
Power Requirements: 12-35 VDC, 10-16 VAC. 1.5 A Rating Required On Supply Due To Initial Power Surge Drawn By Transmitter.
Output Signal: 4-20 MA, Isolated 24V Source, 3 Or 4-Wire Connection.
Output Filter: Selectable 0.5-15 (Seconds).
Loop Resistance: 600 Ohms Max.
Current Consumption: 300 MA Max.
Electrical Connections: Screw Terminal.
Mounting Orientation: Unit Not Position Sensitive. Probe Must Be Aligned With Airflow.
Weight: 13.2 Oz (374.26 G).
Cable Length: 6 Ft (1.82 M).
Probe Length: 12" (30.48 Cm) Standard.
Probe Diameter: 5/16" (0.79 Cm).
OPTIONAL DISPLAY VERSION:
Display: 4-1/2 Digit 1/2" Red LED.
Resolution: 1 FPM, 0.01 MPS (10 FPM @ 10,000 And 15,000 FPM Ranges).
Weight: 13.9 Oz (394.16 g).
